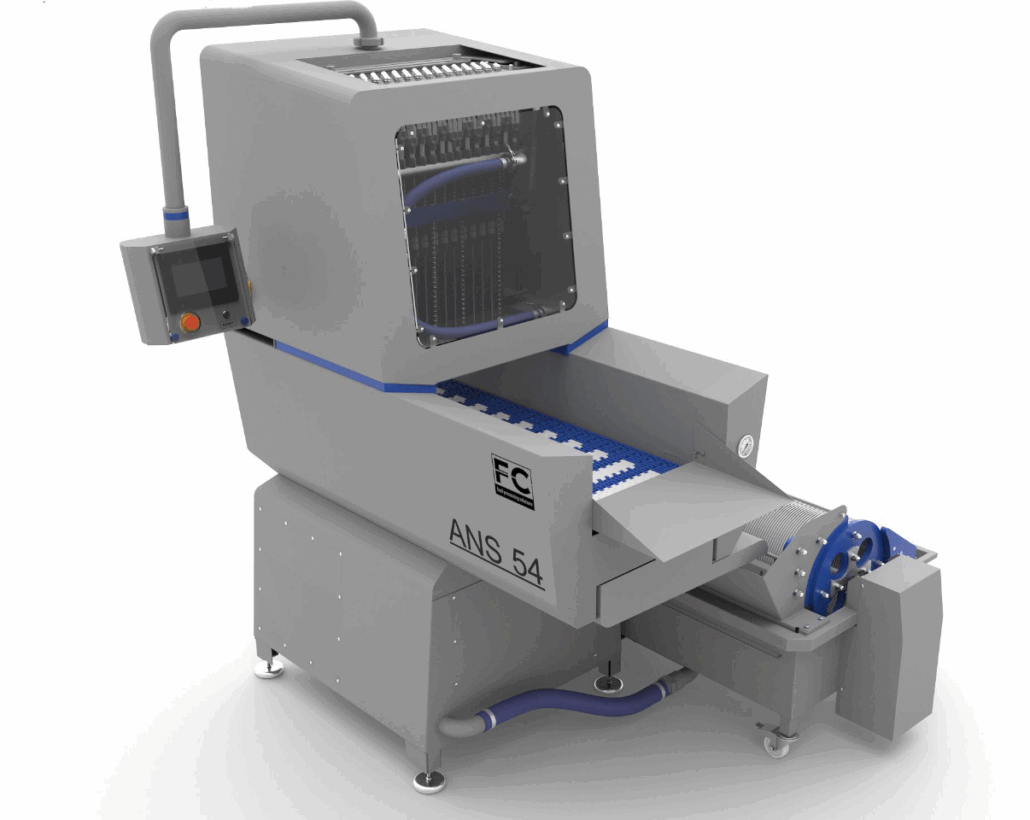

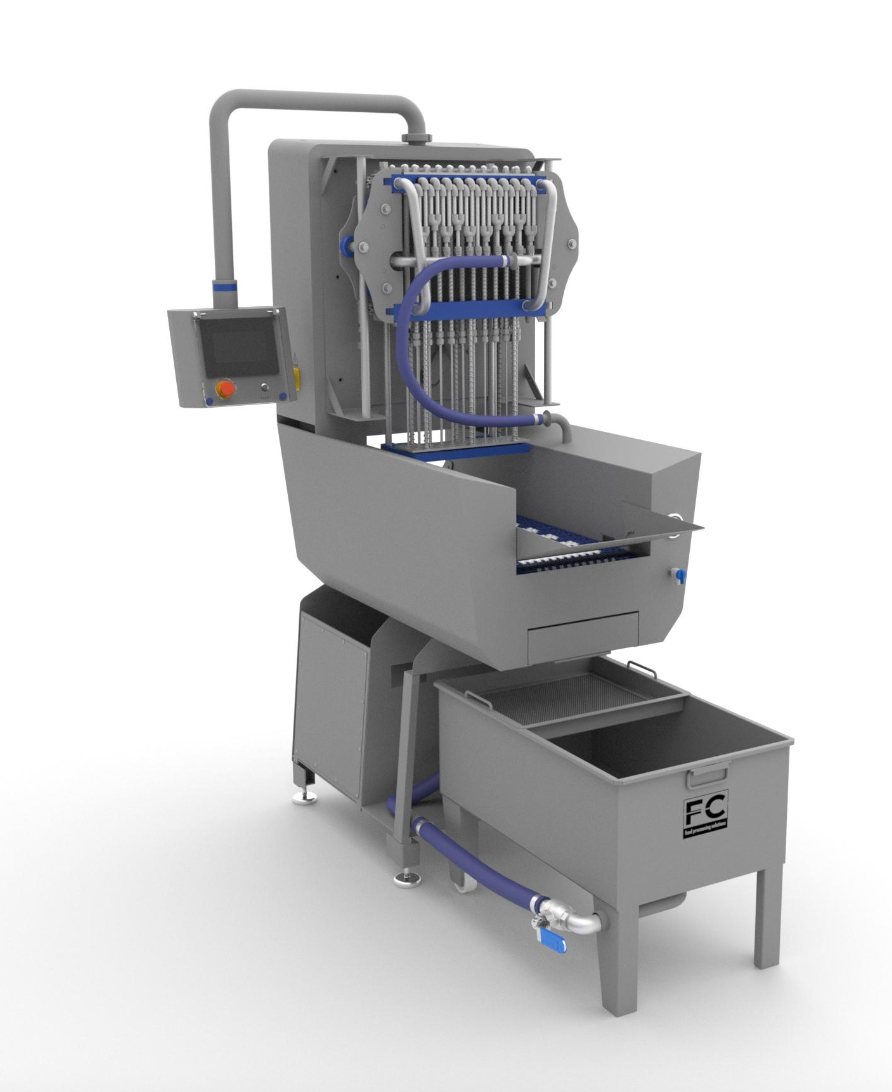

ANS 31 / 54 Single Head Servo Injectors

ANS type injectors are devices with an advanced and solid construction used for injecting meat and fish. This series of  injectors are used in medium and large processing plants, where large quantities of raw material are injected or where there is a need for more advanced processing technology. Depending on customer needs it is possible to use specialised pumps and integrate injectors with an advanced filtration system or brine mixers.

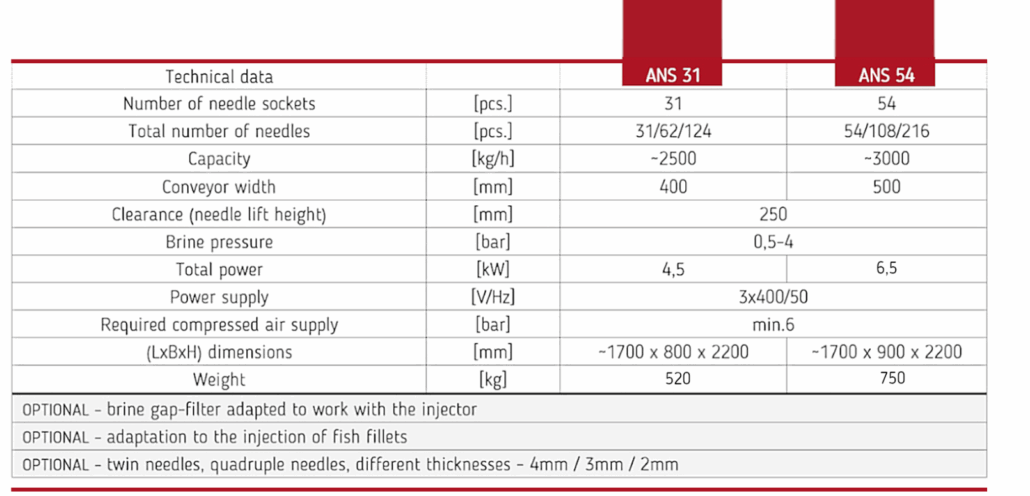

The efficiency of these injectors varies depending on the number of installed needles ( also the number of injection heads)and the width of the feeding conveyor.

Features:

→ Advanced constructions with hygienic design

→ Simple operation, control and maintenance, controlled through Touch screen:

– Programming of operating parameters

– Control of each machine movement parameter

– Regulation of injecting head: movement speed – up/down, needle lifting and lowering height, injection moment (while needles going down / up / both ways), injection repeat (single/double/triple for 1 belt stroke)

– Regulation of pump capacity 0-100% ( injection pressure showed in bar on the manometer 0,1-4 bar) )

→ Needles mounted on a quick-release connectors (single double or quadruple)

→ High-performance inox centrifugal pump, optional screw pump

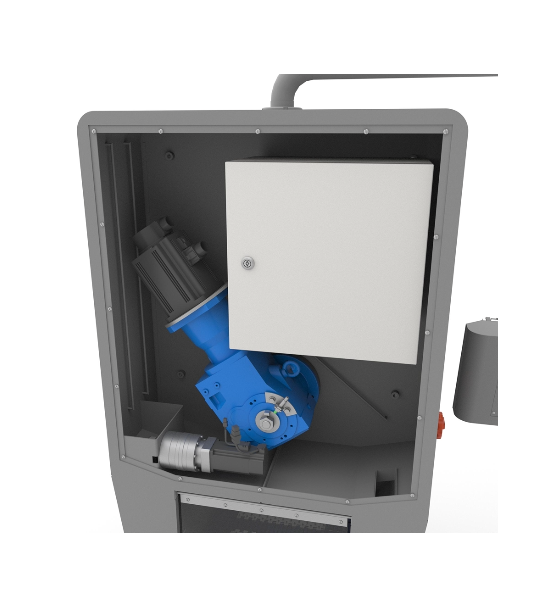

→ Independent servo drives for injection head and conveyor

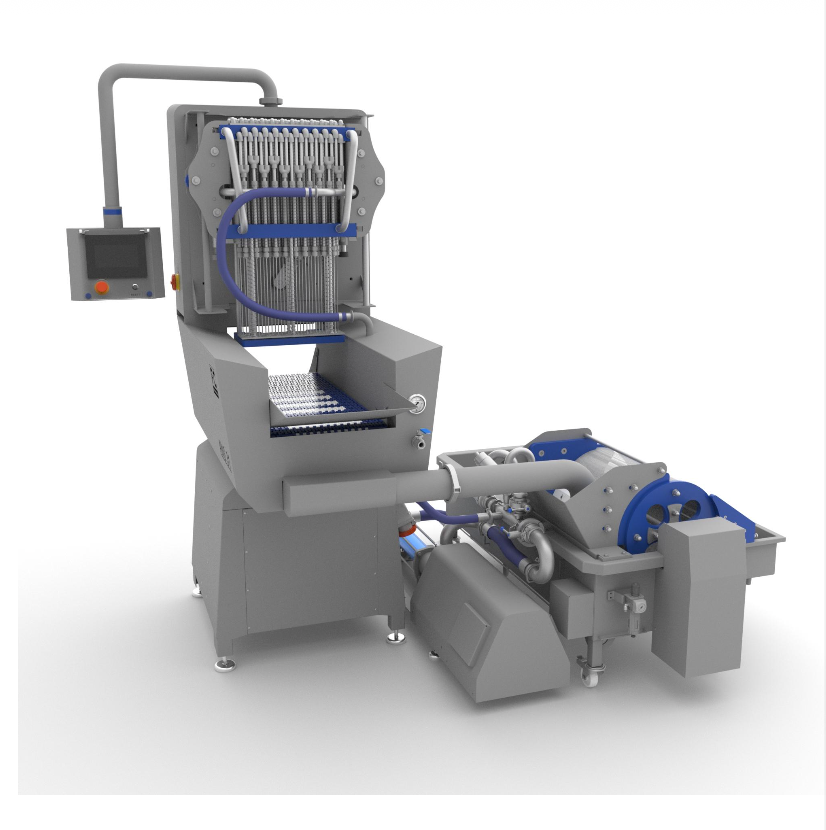

→ Recommended use of dedicated, advanced Foodconcept FS brine filter
