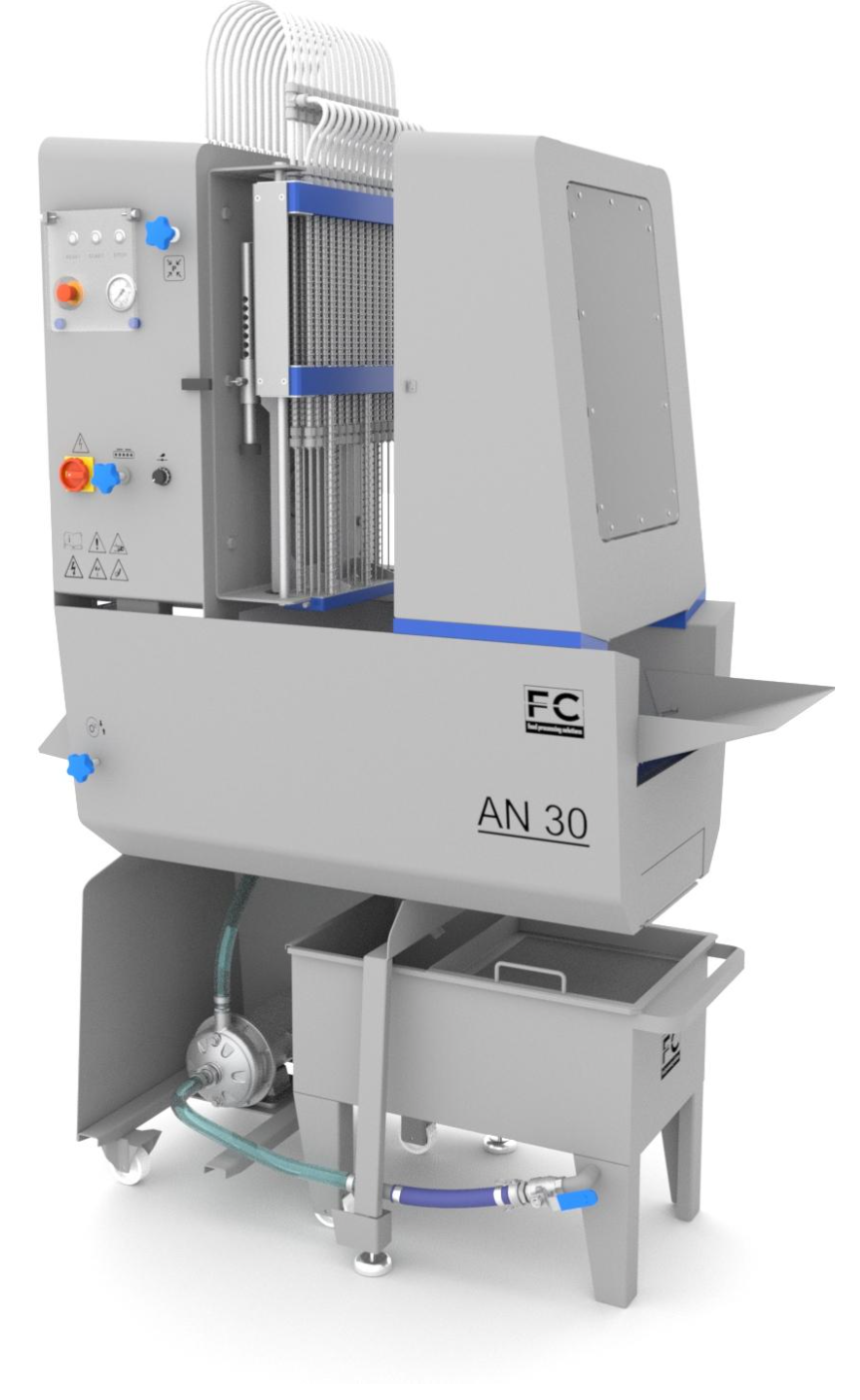

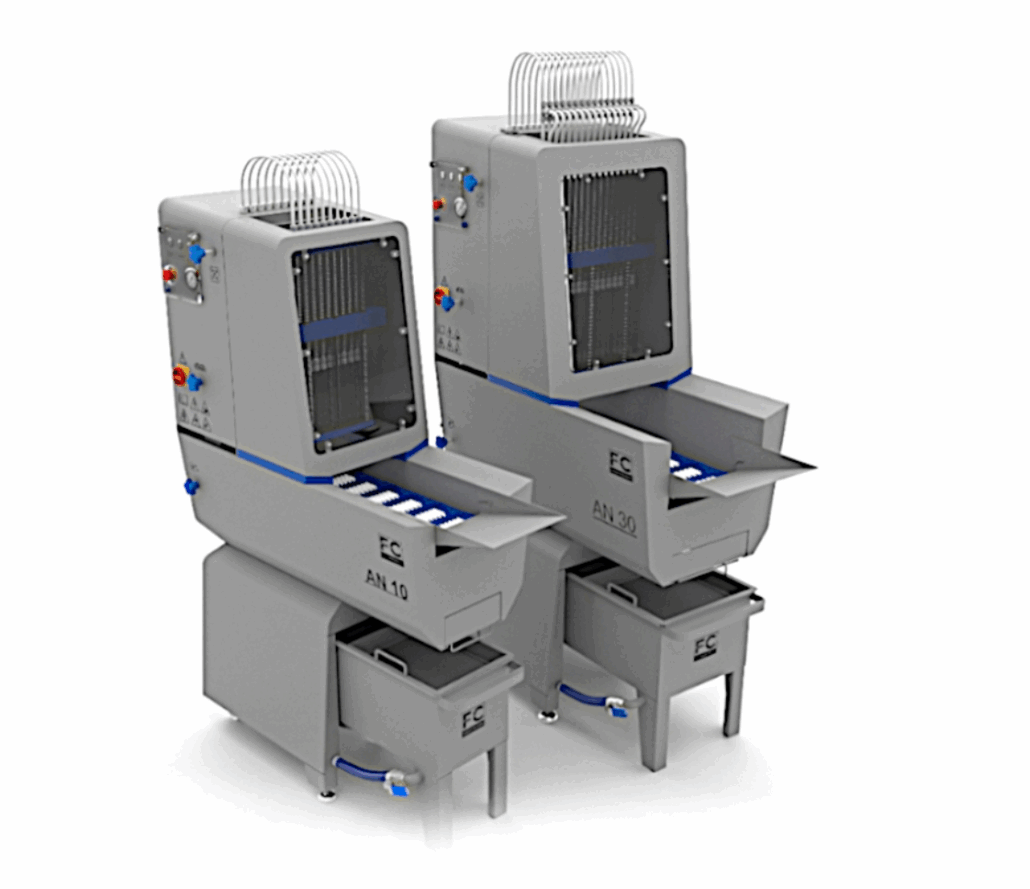

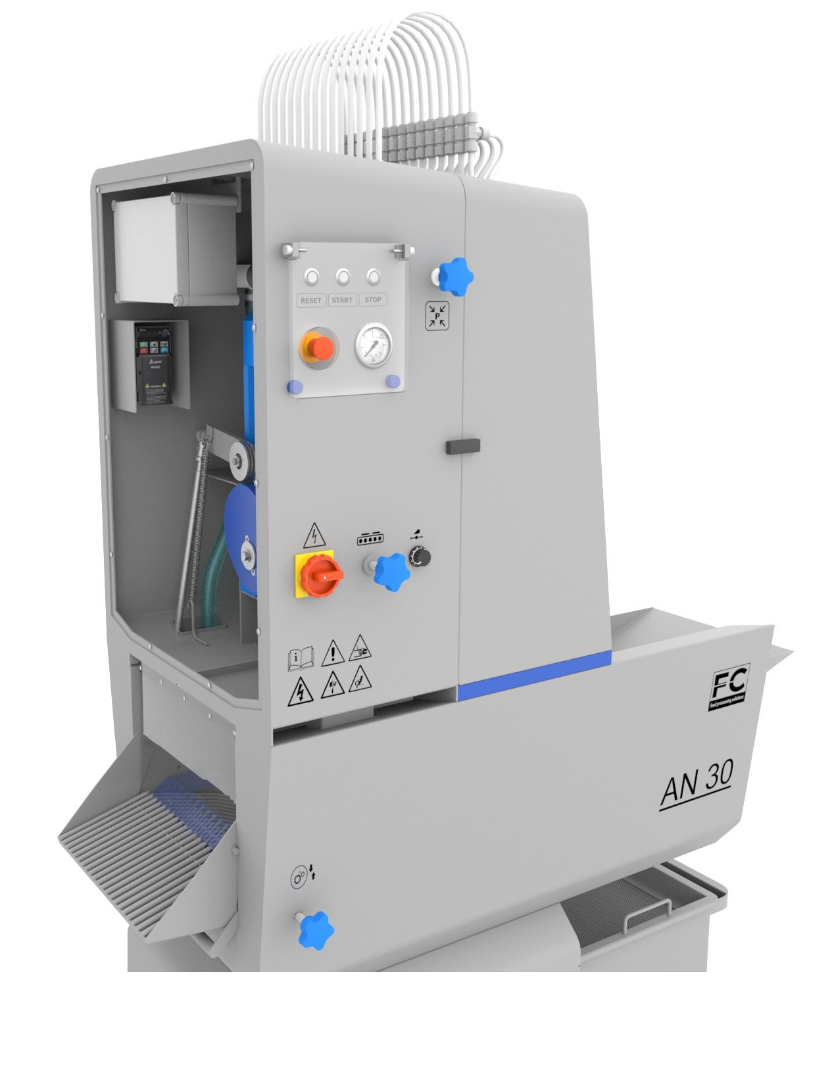

AN 10/20/30 Injector

AN series injectors are devices of simple and solid construction based on proven mechanical solutions. The series of these injectors is used in small and medium sized meat plants, where up to 700kgs to 2000kgs are injected.

Features:

→ Durable, solid, well-thought-out constructions with hygienic design

→ Simple operation, control and maintenance

→ Single needles mounted on a quick-release connectors [ 10 needle in one row]

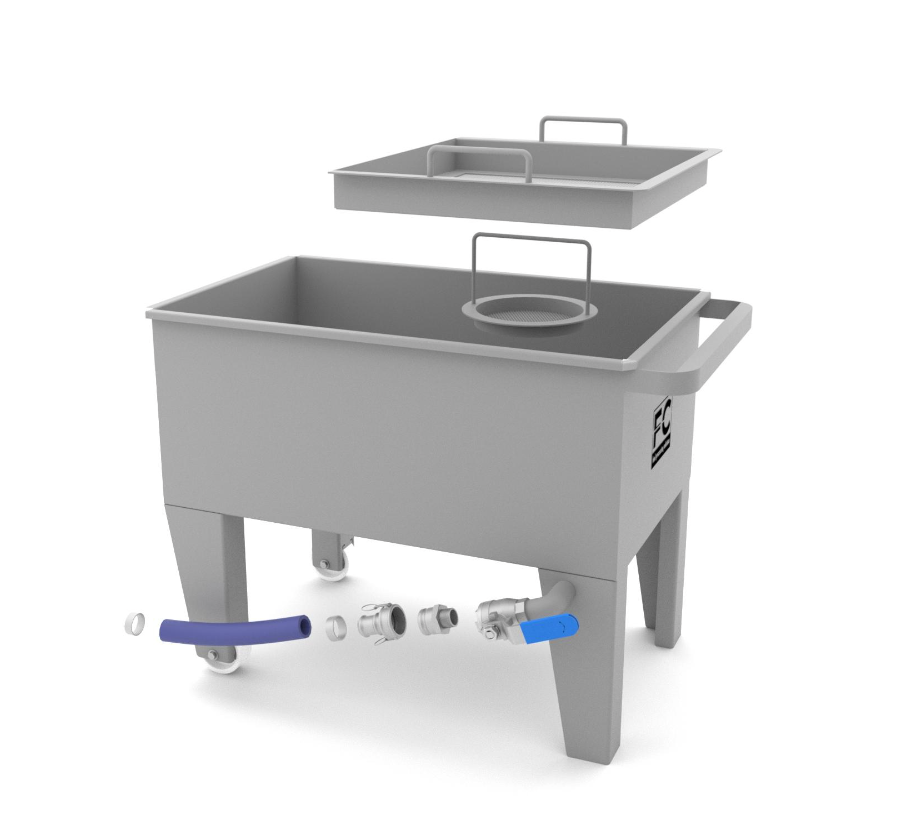

→ High-performance inox centrifugal pump, 60L brine tank with double mesh filter

→ Manual, fluent, precise regulation of injection pressure [ 0.5-3.6 bar]

→ Mechanical adjustment of the conveyor movement

→ Fluent regulation of the injection head movement [regulated with potentiometer]

→ AN30 with extended belt width [400mm] and clearance [250mm]
